Classifying using Logistic Regression

By Salerno | January 13, 2020

1 - Objective

The objective of this example is to identify each of a number of benign or malignant classes.

2 - Data

Let’s getting the data.


BCData <- read.table(url("https://archive.ics.uci.edu/ml/machine-learning-databases/breast-cancer-wisconsin/breast-cancer-wisconsin.data"), sep = ",")

# setting column names
names(BCData)<- c('Id', 'ClumpThickness', 'CellSize','CellShape',
                   'MarginalAdhesion','SECellSize', 'BareNuclei',
                   'BlandChromatin','NormalNucleoli',
                   'Mitoses','Class')

3 - EDA - Exploratory Data Analysis

It’s important to extract prelimionary knowledge from the dataset.


dim(BCData)
## [1] 699  11

str(BCData)
## 'data.frame':    699 obs. of  11 variables:
##  $ Id              : int  1000025 1002945 1015425 1016277 1017023 1017122 1018099 1018561 1033078 1033078 ...
##  $ ClumpThickness  : int  5 5 3 6 4 8 1 2 2 4 ...
##  $ CellSize        : int  1 4 1 8 1 10 1 1 1 2 ...
##  $ CellShape       : int  1 4 1 8 1 10 1 2 1 1 ...
##  $ MarginalAdhesion: int  1 5 1 1 3 8 1 1 1 1 ...
##  $ SECellSize      : int  2 7 2 3 2 7 2 2 2 2 ...
##  $ BareNuclei      : Factor w/ 11 levels "?","1","10","2",..: 2 3 4 6 2 3 3 2 2 2 ...
##  $ BlandChromatin  : int  3 3 3 3 3 9 3 3 1 2 ...
##  $ NormalNucleoli  : int  1 2 1 7 1 7 1 1 1 1 ...
##  $ Mitoses         : int  1 1 1 1 1 1 1 1 5 1 ...
##  $ Class           : int  2 2 2 2 2 4 2 2 2 2 ...

# Remove rows with missing values
BCData<-BCData[!(BCData$BareNuclei=="?"),]

# convert variable to an integer
BCData$BareNuclei<-as.integer(BCData$BareNuclei)

str(BCData)
## 'data.frame':    683 obs. of  11 variables:
##  $ Id              : int  1000025 1002945 1015425 1016277 1017023 1017122 1018099 1018561 1033078 1033078 ...
##  $ ClumpThickness  : int  5 5 3 6 4 8 1 2 2 4 ...
##  $ CellSize        : int  1 4 1 8 1 10 1 1 1 2 ...
##  $ CellShape       : int  1 4 1 8 1 10 1 2 1 1 ...
##  $ MarginalAdhesion: int  1 5 1 1 3 8 1 1 1 1 ...
##  $ SECellSize      : int  2 7 2 3 2 7 2 2 2 2 ...
##  $ BareNuclei      : int  2 3 4 6 2 3 3 2 2 2 ...
##  $ BlandChromatin  : int  3 3 3 3 3 9 3 3 1 2 ...
##  $ NormalNucleoli  : int  1 2 1 7 1 7 1 1 1 1 ...
##  $ Mitoses         : int  1 1 1 1 1 1 1 1 5 1 ...
##  $ Class           : int  2 2 2 2 2 4 2 2 2 2 ...

summary(BCData)
##        Id           ClumpThickness      CellSize        CellShape
##  Min.   :   63375   Min.   : 1.000   Min.   : 1.000   Min.   : 1.000
##  1st Qu.:  877617   1st Qu.: 2.000   1st Qu.: 1.000   1st Qu.: 1.000
##  Median : 1171795   Median : 4.000   Median : 1.000   Median : 1.000
##  Mean   : 1076720   Mean   : 4.442   Mean   : 3.151   Mean   : 3.215
##  3rd Qu.: 1238705   3rd Qu.: 6.000   3rd Qu.: 5.000   3rd Qu.: 5.000
##  Max.   :13454352   Max.   :10.000   Max.   :10.000   Max.   :10.000
##  MarginalAdhesion   SECellSize       BareNuclei     BlandChromatin
##  Min.   : 1.00    Min.   : 1.000   Min.   : 2.000   Min.   : 1.000
##  1st Qu.: 1.00    1st Qu.: 2.000   1st Qu.: 2.000   1st Qu.: 2.000
##  Median : 1.00    Median : 2.000   Median : 2.000   Median : 3.000
##  Mean   : 2.83    Mean   : 3.234   Mean   : 3.217   Mean   : 3.445
##  3rd Qu.: 4.00    3rd Qu.: 4.000   3rd Qu.: 3.000   3rd Qu.: 5.000
##  Max.   :10.00    Max.   :10.000   Max.   :11.000   Max.   :10.000
##  NormalNucleoli     Mitoses           Class
##  Min.   : 1.00   Min.   : 1.000   Min.   :2.0
##  1st Qu.: 1.00   1st Qu.: 1.000   1st Qu.:2.0
##  Median : 1.00   Median : 1.000   Median :2.0
##  Mean   : 2.87   Mean   : 1.603   Mean   :2.7
##  3rd Qu.: 4.00   3rd Qu.: 1.000   3rd Qu.:4.0
##  Max.   :10.00   Max.   :10.000   Max.   :4.0

table(BCData$Class)
##
##   2   4
## 444 239

The number 2 means “benign” and number 4 means “malignant”.

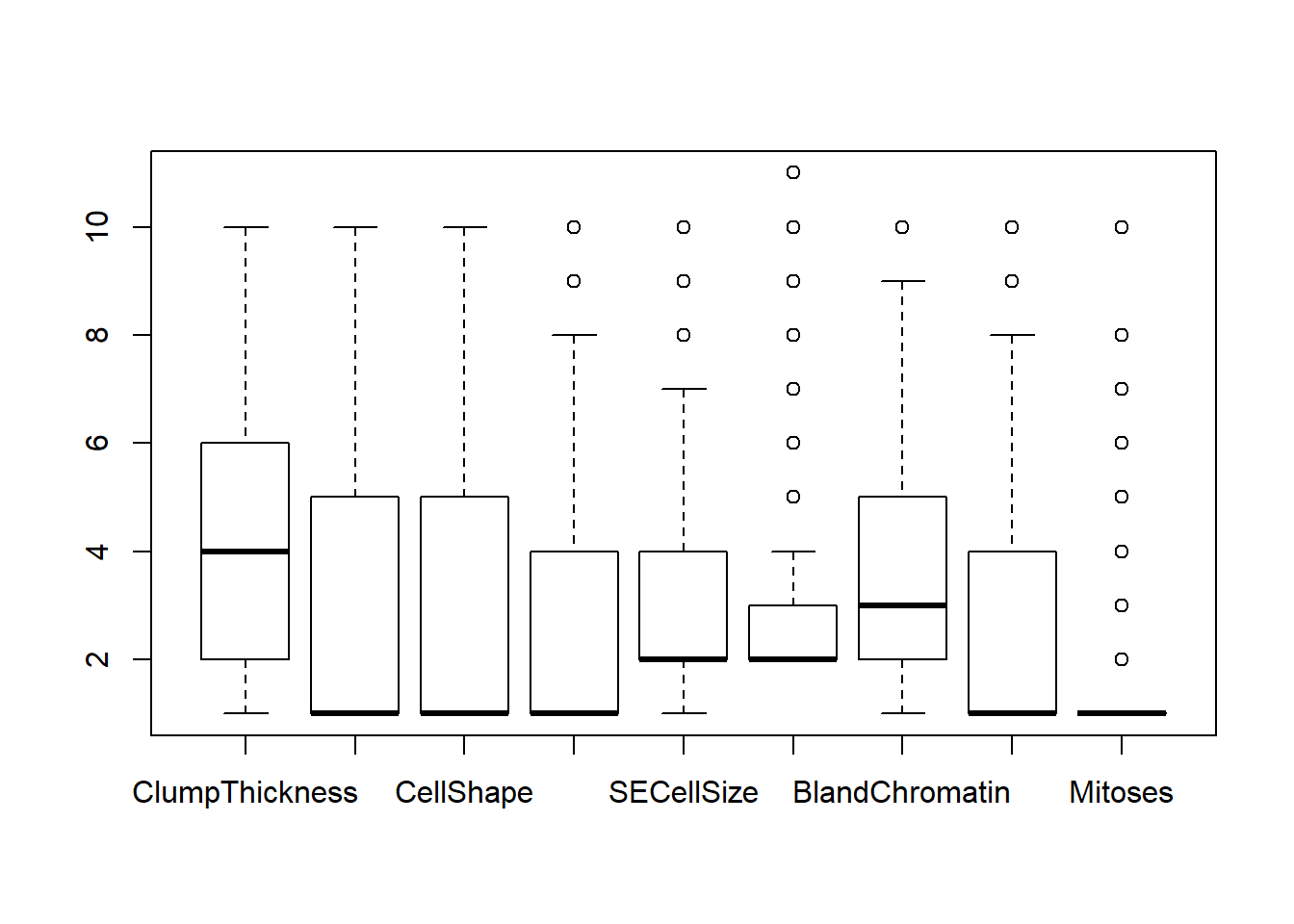

boxplot(BCData[,2:10])

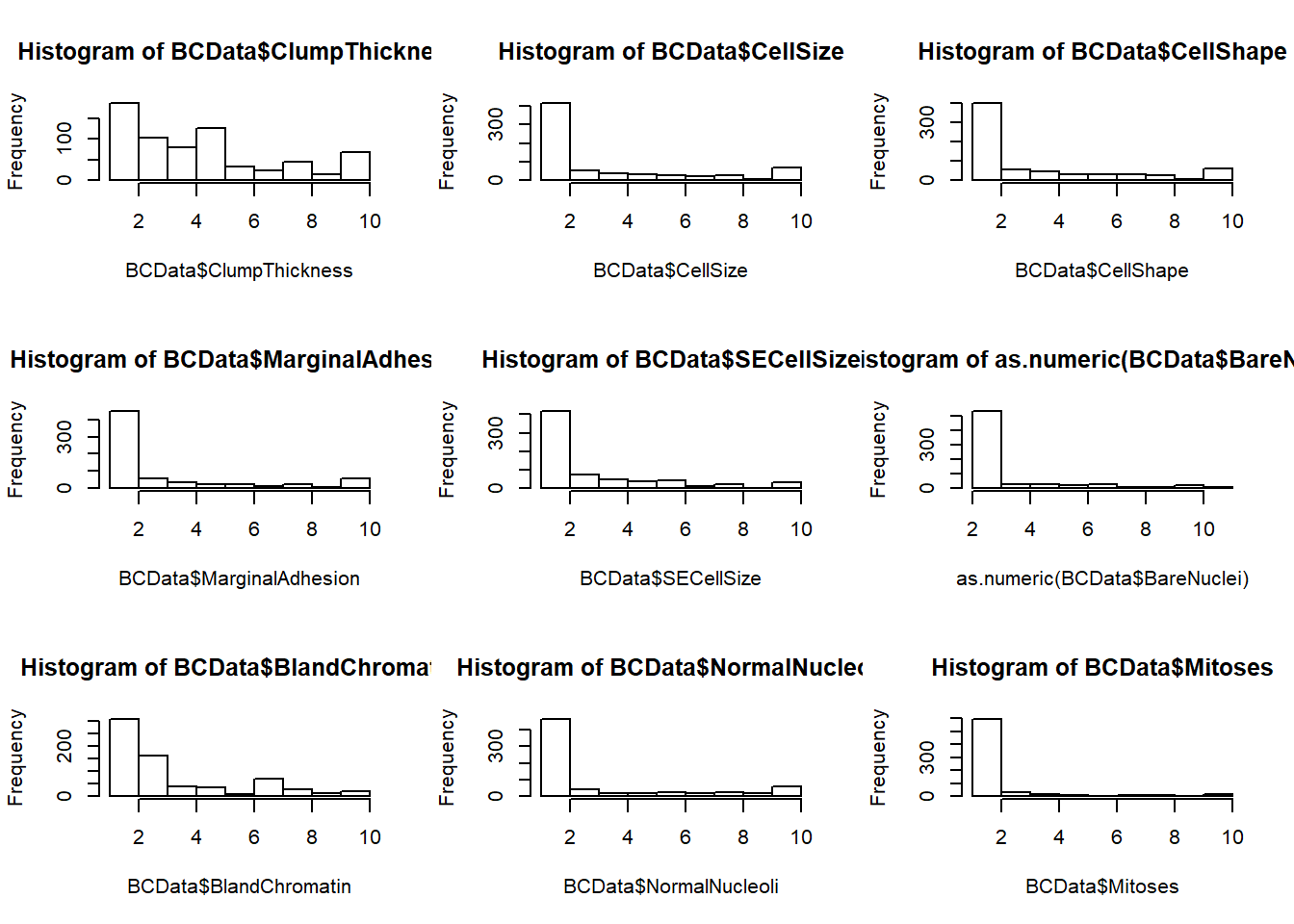

To better identify the presence of outliers, we can plot histograms of the variables in the database


par(mfrow=c(3, 3))
hist(BCData$ClumpThickness)
hist(BCData$CellSize)
hist(BCData$CellShape)
hist(BCData$MarginalAdhesion)
hist(BCData$SECellSize)
hist(as.numeric(BCData$BareNuclei))
hist(BCData$BlandChromatin)
hist(BCData$NormalNucleoli)
hist(BCData$Mitoses)

4 - Model Fitting


BCData$Class<-replace(BCData$Class,BCData$Class==2,0)
BCData$Class<-replace(BCData$Class,BCData$Class==4,1)

table(BCData$Class)
##
##   0   1
## 444 239

It is time to build the logistic regression model to obtain a tool capable of predicting the class of new observations.


LoGModel <- glm(Class ~.-Id,
              family=binomial(link='logit'),data=BCData)

summary(LoGModel)
##
## Call:
## glm(formula = Class ~ . - Id, family = binomial(link = "logit"),
##     data = BCData)
##
## Deviance Residuals:
##     Min       1Q   Median       3Q      Max
## -3.6922  -0.1128  -0.0588   0.0206   2.6233
##
## Coefficients:
##                   Estimate Std. Error z value Pr(>|z|)
## (Intercept)      -11.05697    1.24336  -8.893  < 2e-16 ***
## ClumpThickness     0.58181    0.12937   4.497 6.88e-06 ***
## CellSize          -0.05776    0.20026  -0.288 0.773024
## CellShape          0.52133    0.21391   2.437 0.014802 *
## MarginalAdhesion   0.38661    0.10949   3.531 0.000414 ***
## SECellSize         0.18570    0.14787   1.256 0.209179
## BareNuclei         0.21915    0.11224   1.952 0.050887 .
## BlandChromatin     0.61953    0.16219   3.820 0.000134 ***
## NormalNucleoli     0.14997    0.10936   1.371 0.170251
## Mitoses            0.58935    0.35733   1.649 0.099087 .
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## (Dispersion parameter for binomial family taken to be 1)
##
##     Null deviance: 884.35  on 682  degrees of freedom
## Residual deviance: 117.91  on 673  degrees of freedom
## AIC: 137.91
##
## Number of Fisher Scoring iterations: 8

anova(LoGModel, test="Chisq")
## Analysis of Deviance Table
##
## Model: binomial, link: logit
##
## Response: Class
##
## Terms added sequentially (first to last)
##
##
##                  Df Deviance Resid. Df Resid. Dev  Pr(>Chi)
## NULL                               682     884.35
## ClumpThickness    1   425.87       681     458.48 < 2.2e-16 ***
## CellSize          1   261.91       680     196.58 < 2.2e-16 ***
## CellShape         1    20.08       679     176.50 7.427e-06 ***
## MarginalAdhesion  1    21.39       678     155.11 3.750e-06 ***
## SECellSize        1     6.45       677     148.66  0.011112 *
## BareNuclei        1     6.98       676     141.68  0.008248 **
## BlandChromatin    1    18.42       675     123.26 1.767e-05 ***
## NormalNucleoli    1     2.09       674     121.17  0.148710
## Mitoses           1     3.26       673     117.91  0.070868 .
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

LGModelPred <- round(predict(LoGModel, type="response"))

table(LGModelPred)
## LGModelPred
##   0   1
## 440 243

table(BCData$Class, LGModelPred)
##    LGModelPred
##       0   1
##   0 432  12
##   1   8 231

library(caret)
## Carregando pacotes exigidos: lattice
## Carregando pacotes exigidos: ggplot2
confusionMatrix(table(LGModelPred, BCData$Class), positive="1")
## Confusion Matrix and Statistics
##
##
## LGModelPred   0   1
##           0 432   8
##           1  12 231
##
##                Accuracy : 0.9707
##                  95% CI : (0.9551, 0.982)
##     No Information Rate : 0.6501
##     P-Value [Acc > NIR] : <2e-16
##
##                   Kappa : 0.9359
##
##  Mcnemar's Test P-Value : 0.5023
##
##             Sensitivity : 0.9665
##             Specificity : 0.9730
##          Pos Pred Value : 0.9506
##          Neg Pred Value : 0.9818
##              Prevalence : 0.3499
##          Detection Rate : 0.3382
##    Detection Prevalence : 0.3558
##       Balanced Accuracy : 0.9698
##
##        'Positive' Class : 1
##
library(pROC)
## Type 'citation("pROC")' for a citation.
##
## Attaching package: 'pROC'
## The following objects are masked from 'package:stats':
##
##     cov, smooth, var

RocObj <- pROC::roc(BCData$Class, LGModelPred, levels = c(0, 1), direction = "<")

print(RocObj)
##
## Call:
## roc.default(response = BCData$Class, predictor = LGModelPred,     levels = c(0, 1), direction = "<")
##
## Data: LGModelPred in 444 controls (BCData$Class 0) < 239 cases (BCData$Class 1).
## Area under the curve: 0.9698

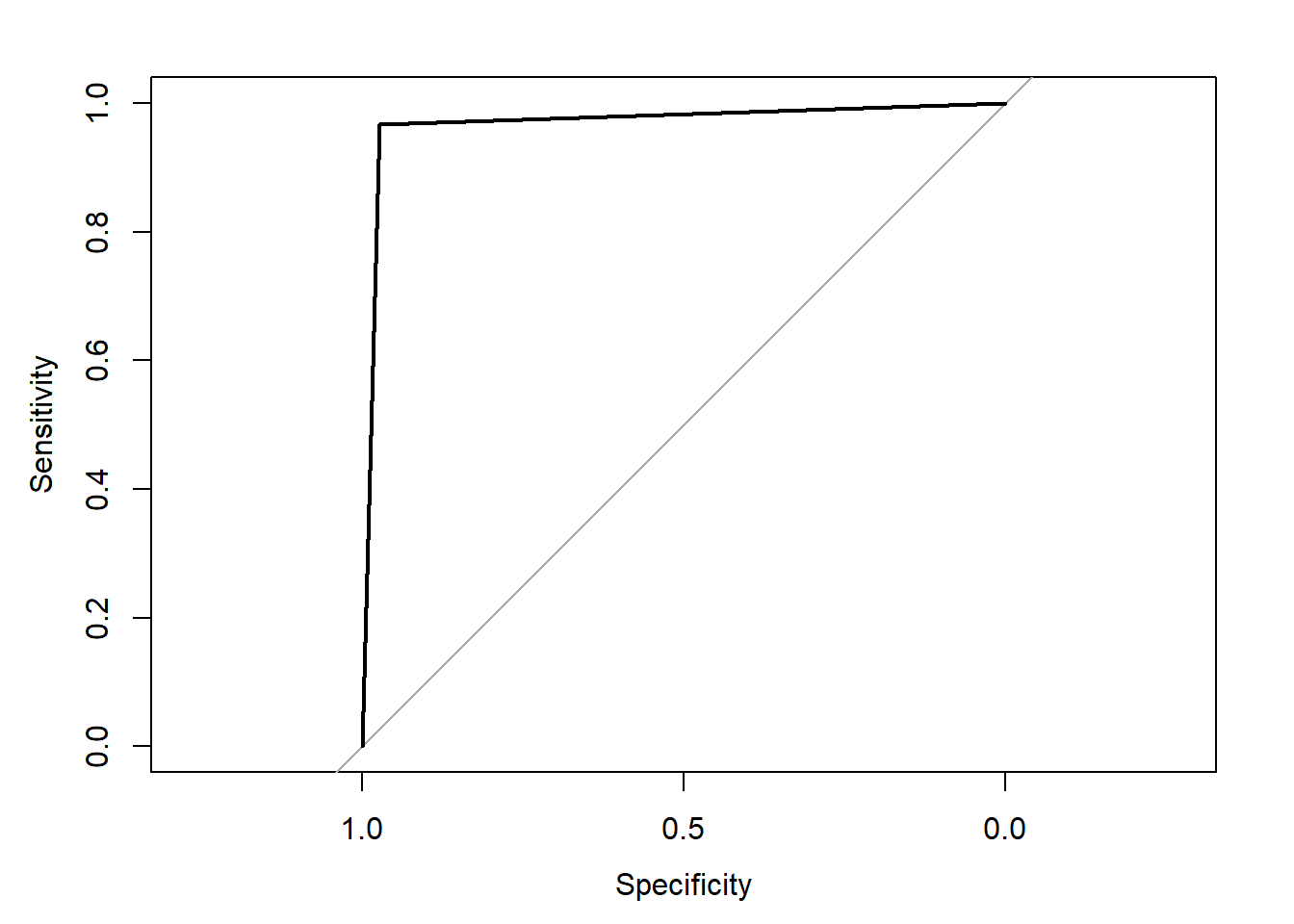

plot.roc(RocObj)

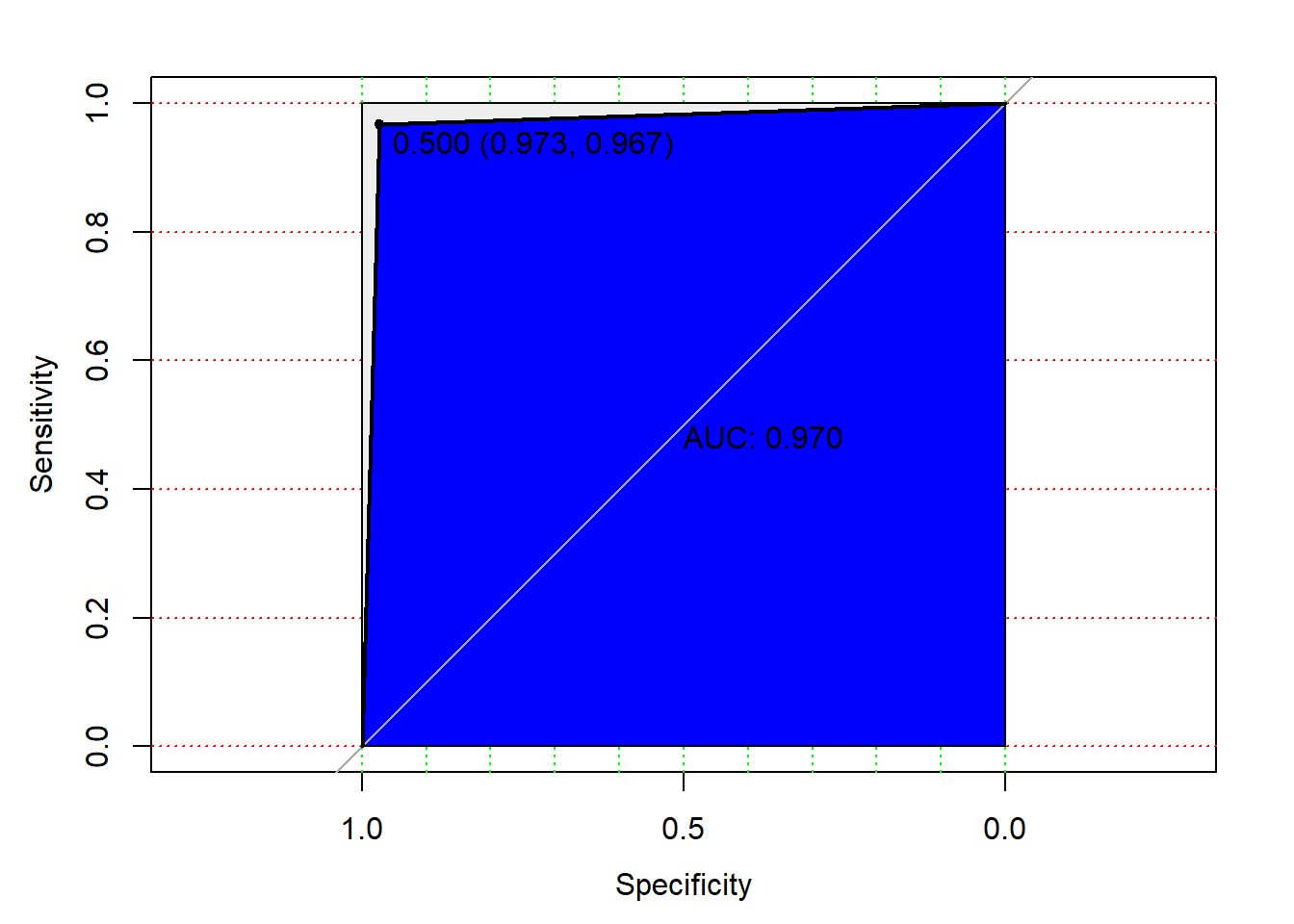

plot(RocObj, print.auc=TRUE, auc.polygon=TRUE, grid=c(0.1, 0.2),
               grid.col=c("green", "red"), max.auc.polygon=TRUE,
                       auc.polygon.col="blue", print.thres=TRUE)
